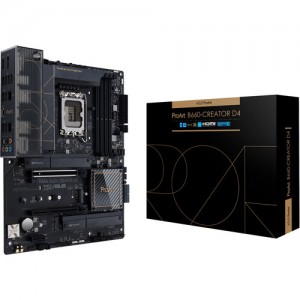

ASUS ProArt B660-CREATOR D4 LGA 1700 ATX specs
Motherboards Specs >> ASUS >> ASUS ProArt B660-CREATOR D4 LGA 1700 ATX| Specifications | | | Reviews |
General Specs ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
Chipset:
Intel B660
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4600, 4800, 5000, 5333 MT/s
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
Expansion Slots:
1x PCIe 5.0 x16 (x16 mode)
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x1
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x1
Wi-Fi:
No
Form Factor:
ATX
CPU ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
Chipset:
Intel B660
CPU Socket:
LGA 1700
Back Panel I/O ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4 Input
1x DisplayPort 1.4 Input
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Intel Gigabit
1x Realtek 2.5Gigabit
1x Realtek 2.5Gigabit
Memory ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4600, 4800, 5000, 5333 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
Optane Memory Support:
Yes
RAID Support:
RAID 0, 1, 5, 10 (SATA)
Internal I/O ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16 (x16 mode)
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x1
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 4-Pin ATX
1x 8-Pin ATX
1x 4-Pin ATX
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Audio:
No
Diagnostics:
Clear CMOS
Add-On:
1x Thunderbolt Header
BIOS ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
ROM:
128 Mb
Front Panel I/O ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
Front Panel I/O:
AAFP
Audio ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
Wi-Fi:
No
Bluetooth:
No
Module Support:
1 E Key M.2
Software ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
OS Compatibility:
Windows 11
Windows 10
Windows 10
Physical ASUS ProArt B660-CREATOR D4 LGA 1700 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
