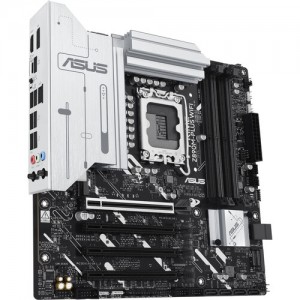

ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX specs
Motherboards Specs >> ASUS >> ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX| Specifications | | | Reviews |
General Specs ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 3800 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
Micro-ATX
CPU ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 3800 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment6x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 4-Pin CPU
1x 8-Pin CPU
1x 4-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Audio:
1x Speaker
1x S/PDIF
1x S/PDIF
Diagnostics:
Clear CMOS, Flash BIOS
Add-On:
1x Thunderbolt Header
Legacy:
1x Serial
BIOS ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
ROM:
256 Mb
Front Panel I/O ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
Audio ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Module Support:
1 E Key M.2
Software ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
OS Compatibility:
Windows 11
Physical ASUS PRIME Z890M-PLUS WIFI LGA 1851 M-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
