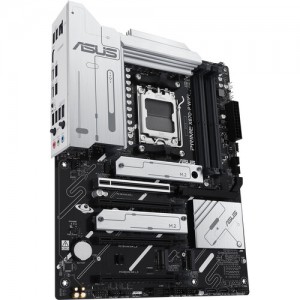

ASUS PRIME X870-P WIFI AM5 ATX specs
Motherboards Specs >> ASUS >> ASUS PRIME X870-P WIFI AM5 ATX| Specifications | | | Reviews |
General Specs ASUS PRIME X870-P WIFI AM5 ATX Motherboard
Chipset:
AMD X870
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 3.0 x2)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 3.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
3x PCIe 4.0 x16 (x1 mode)
3x PCIe 4.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU ASUS PRIME X870-P WIFI AM5 ATX Motherboard
Chipset:
AMD X870
CPU Socket:
AM5
Back Panel I/O ASUS PRIME X870-P WIFI AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-C (USB4)
1x USB-A (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory ASUS PRIME X870-P WIFI AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion ASUS PRIME X870-P WIFI AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment2x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 3.0 x2)
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2280 (PCIe 3.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1 (SATA)
RAID 0, 1 (SATA)
Internal I/O ASUS PRIME X870-P WIFI AM5 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
3x PCIe 4.0 x16 (x1 mode)
3x PCIe 4.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
TPM Header
LED Header:
3x RGB
Audio:
1x S/PDIF
Diagnostics:
2-Digit Debug LED
Legacy:
1x Serial
BIOS ASUS PRIME X870-P WIFI AM5 ATX Motherboard
ROM:
256 Mb
Front Panel I/O ASUS PRIME X870-P WIFI AM5 ATX Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio ASUS PRIME X870-P WIFI AM5 ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless ASUS PRIME X870-P WIFI AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Software ASUS PRIME X870-P WIFI AM5 ATX Motherboard
OS Compatibility:
Windows 11
Physical ASUS PRIME X870-P WIFI AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
