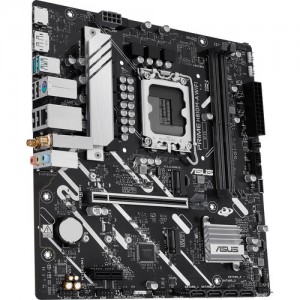

General Specs ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
Chipset:
Intel H810
CPU Socket:
LGA 1851
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 6400 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x1
1x PCIe 4.0 x1
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (1 x 1)
Form Factor:
Micro-ATX
CPU ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
Chipset:
Intel H810
CPU Socket:
LGA 1851
Back Panel I/O ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek Gigabit
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 6400 MT/s
Maximum Capacity:
96 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
No
Internal I/O ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x1
1x PCIe 4.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
2x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 8-Pin CPU
Security:
TPM Header
LED Header:
3x RGB
Audio:
1x Speaker
1x S/PDIF
1x S/PDIF
Diagnostics:
Clear CMOS
Legacy:
1x Serial
BIOS ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
ROM:
2x 128 Mb
Front Panel I/O ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
Audio ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (1 x 1)
Bluetooth:
5.3
Module Support:
1 E Key M.2
Software ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
OS Compatibility:
Windows 10 or Later
Physical ASUS PRIME H810M-A WIFI-CSM LGA 1851 M-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 8.75" / 24.4 x 22.23 cm
