ASUS PRIME H810M-A-CSM LGA 1851 M-ATX specs

  Motherboards Specs >> ASUS >> ASUS PRIME H810M-A-CSM LGA 1851 M-ATX
Specifications | Reviews

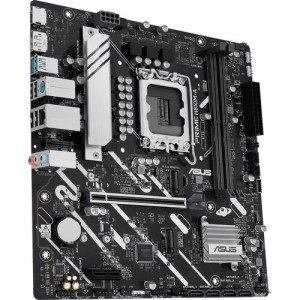

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX



General Specs ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

Chipset:
Intel H810
CPU Socket:
LGA 1851
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 6400 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x1
Wi-Fi:
No
Form Factor:
Micro-ATX

CPU ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

Chipset:
Intel H810
CPU Socket:
LGA 1851

Back Panel I/O ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

USB:?Universal Serial Bus
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek Gigabit
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback

Memory ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

Memory Slots:
2x 288-Pin
Memory Support:
DDR5 6400 MT/s
Maximum Capacity:
96 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
No

Internal I/O ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x1
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
Security:
TPM Header
LED Header:
3x RGB
Audio:
1x Speaker
1x S/PDIF
Diagnostics:
Clear CMOS
Legacy:
1x Serial

BIOS ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

ROM:
2x 128 Mb

Front Panel I/O ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1

Audio ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

Audio Codec:
Realtek (7.1-Channel)
DAC:
No

Wireless ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

Wi-Fi:
No
Bluetooth:
No
Module Support:
1 E Key M.2

Software ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

OS Compatibility:
Windows 10 or Later

Physical ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

Form Factor:
Micro-ATX
Dimensions:
9.6 x 8.75" / 24.4 x 22.23 cm
