ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX specs

  Motherboards Specs >> ASUS >> ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX
Specifications | Reviews

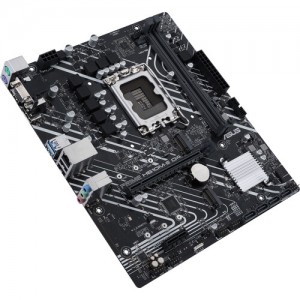

ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX



General Specs ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

Chipset:
Intel H610
CPU Socket:
LGA 1700
Memory Slots:
2x 288-Pin
Memory Support:
DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x2)
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 3.0 x1
Wi-Fi:
No
Form Factor:
Micro-ATX

CPU ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

Chipset:
Intel H610
CPU Socket:
LGA 1700

Back Panel I/O ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

USB:?Universal Serial Bus
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x VGA
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek Gigabit
PS/2:
2x PS/2

Memory ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

Memory Slots:
2x 288-Pin
Memory Support:
DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200 MT/s
Maximum Capacity:
64 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x2)
Optane Memory Support:
No
RAID Support:
No

Internal I/O ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 3.0 x1
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
Security:
TPM Header
LED Header:
1x RGB
Audio:
1x Speaker
1x S/PDIF
Diagnostics:
Clear CMOS
Legacy:
1x Serial

BIOS ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

ROM:
128 Mb

Front Panel I/O ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

Front Panel I/O:
AAFP

Audio ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

Audio Codec:
Realtek (7.1-Channel)
DAC:
No

Wireless ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

Wi-Fi:
No
Bluetooth:
No

Software ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

OS Compatibility:
Windows 11
Windows 10

Physical ASUS PRIME H610M-E D4-CSM LGA 1700 Mini-ATX Motherboard

Form Factor:
Micro-ATX
Dimensions:
9.6 x 8.3" / 24.4 x 21.1 cm
