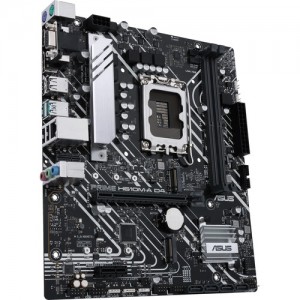

ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX specs
Motherboards Specs >> ASUS >> ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX| Specifications | | | Reviews |
General Specs ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
Chipset:
Intel H610
CPU Socket:
LGA 1700
Memory Slots:
2x 288-Pin
Memory Support:
DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x2)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x2)
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 3.0 x1
1x PCIe 3.0 x1
Wi-Fi:
No
Form Factor:
Micro-ATX
CPU ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
Chipset:
Intel H610
CPU Socket:
LGA 1700
Back Panel I/O ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x VGA
1x DisplayPort 1.4
1x VGA
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Intel Gigabit
PS/2:
2x PS/2
Memory ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200 MT/s
Maximum Capacity:
64 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x2)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x2)
Optane Memory Support:
No
RAID Support:
No
Internal I/O ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 3.0 x1
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 3 USB-A Port)
2x USB 2.0 Header (Supports 3 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
2x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
TPM Header
LED Header:
5x RGB
Audio:
1x Speaker
1x S/PDIF
1x S/PDIF
Diagnostics:
Clear CMOS
Legacy:
1x Serial
BIOS ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
ROM:
128 Mb
Front Panel I/O ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
Front Panel I/O:
AAFP
Audio ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
Wi-Fi:
No
Bluetooth:
No
Module Support:
1 E Key M.2
Software ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
OS Compatibility:
Windows 11
Windows 10
Windows 10
Physical ASUS PRIME H610M-A D4 LGA 1700 Micro-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 8.3" / 24.4 x 21.1 cm
