ASUS PRIME B860-PLUS LGA 1851 ATX specs

  Motherboards Specs >> ASUS >> ASUS PRIME B860-PLUS LGA 1851 ATX
Specifications | Reviews

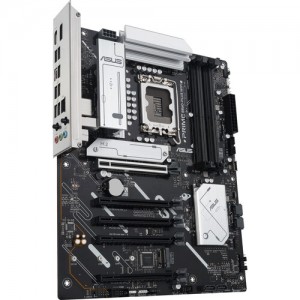

ASUS PRIME B860-PLUS LGA 1851 ATX



General Specs ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

Chipset:
Intel B860
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8200 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
3x PCIe 4.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX

CPU ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

Chipset:
Intel B860
CPU Socket:
LGA 1851

Back Panel I/O ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback

Memory ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 8200 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10

Internal I/O ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
3x PCIe 4.0 x16 (x1 mode)
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Audio:
1x Speaker
1x S/PDIF
Diagnostics:
Clear CMOS, Flash BIOS
Add-On:
1x Thunderbolt Header
Legacy:
1x Serial

BIOS ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

ROM:
2x 128 Mb

Front Panel I/O ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1

Audio ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

Audio Codec:
Realtek (7.1-Channel)
DAC:
No

Wireless ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.3
Module Support:
1 E Key M.2

Software ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

OS Compatibility:
Windows 10 or Later

Physical ASUS PRIME B860-PLUS LGA 1851 ATX Motherboard

Form Factor:
ATX
Dimensions:
12 x 9.6" / 30.5 x 24.4 cm
