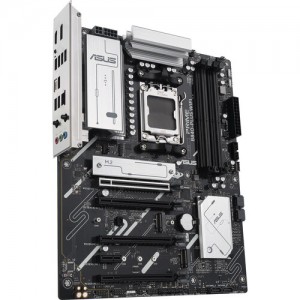

ASUS PRIME B840-PLUS WIFI AM5 ATX specs
Motherboards Specs >> ASUS >> ASUS PRIME B840-PLUS WIFI AM5 ATX| Specifications | | | Reviews |
General Specs ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
Chipset:
AMD B840
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 7600 MT/s
Storage Slots:
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
1x PCIe 3.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
Chipset:
AMD B840
CPU Socket:
AM5
Back Panel I/O ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
1x DisplayPort 1.4
1x DisplayPort 1.4
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 7600 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
2x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 3.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5 (SATA)
RAID 0, 1, 5 (SATA)
Internal I/O ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
1x PCIe 3.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 4-Pin ATX
1x 8-Pin CPU
1x 4-Pin ATX
Security:
Chassis Intrusion, TPM Header
LED Header:
3x RGB
Audio:
1x Speaker
1x S/PDIF
1x S/PDIF
Diagnostics:
Clear CMOS
Add-On:
1x Thunderbolt Header
Legacy:
1x Serial
BIOS ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
ROM:
256 Mb
Front Panel I/O ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
Audio ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.3
Module Support:
1 E Key M.2
Software ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
OS Compatibility:
Windows 10 or Later
Physical ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
12 x 9.6" / 30.5 x 24.4 cm
