ASUS PRIME B760M-A AX LGA 1700 Micro-ATX specs

  Motherboards Specs >> ASUS >> ASUS PRIME B760M-A AX LGA 1700 Micro-ATX
Specifications | Reviews

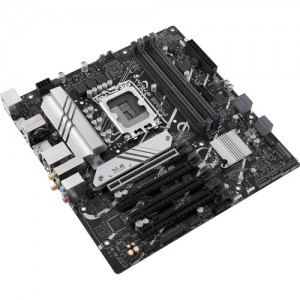

ASUS PRIME B760M-A AX LGA 1700 Micro-ATX



General Specs ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

Chipset:
Intel B760
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
Micro-ATX

CPU ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

Chipset:
Intel B760
CPU Socket:
LGA 1700

Back Panel I/O ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

USB:?Universal Serial Bus
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
2x HDMI
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector

Memory ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

SATA:?Serial Advanced Technology Attachment
6x SATA III
Storage Slots:
2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)

Internal I/O ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x1 mode)
USB:?Universal Serial Bus
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-C Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
2x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
4x RGB
Audio:
1x S/PDIF
Diagnostics:
Clear CMOS
Legacy:
1x Serial

BIOS ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

ROM:
128 Mb

Front Panel I/O ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1

Audio ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

Audio Codec:
Realtek (7.1-Channel)
DAC:
No

Wireless ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.2

Software ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

OS Compatibility:
Windows 10 to 11

Physical ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard

Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
