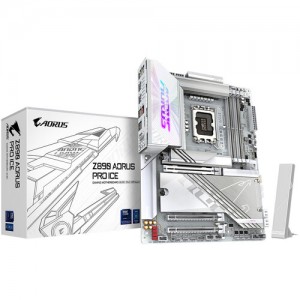

Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX (Snow White) specs
Motherboards Specs >> GIGABYTE >> Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX (Snow White)| Specifications | | | Reviews |
General Specs Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200, 9333, 9466, 9500 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
USB:
Universal Serial Bus
Universal Serial Bus2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
2x Thunderbolt 4
Display:
No Dedicated Display Ports (Video Signal via USB-C)
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek RTL8126 5GbE
Wi-Fi Antenna:
2x Connector
Memory Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200, 9333, 9466, 9500 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (SATA)
Internal I/O Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
3x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Audio:
No
Diagnostics:
Clear CMOS, Reset
BIOS Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
ROM:
256 Mb
Front Panel I/O Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
Front Panel I/O:
AAFP, USB 3.2 Gen 2x2, HDMI
Audio Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
Audio Codec:
Realtek ALC1220-VB (7.1-Channel)
DAC:
No
Wireless Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Software Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
OS Compatibility:
Windows 11 (64-Bit Only)
Physical Gigabyte Z890 AORUS PRO ICE LGA 1851 ATX Motherboard (Snow White)
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
