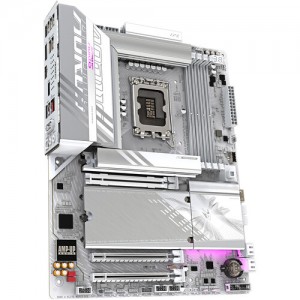

Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX (Snow White) specs
Motherboards Specs >> GIGABYTE >> Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX (Snow White)| Specifications | | | Reviews |
General Specs Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor:
ATX
CPU Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
USB:
Universal Serial Bus
Universal Serial Bus2x USB-A (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
1x Thunderbolt 4
Display:
1x DisplayPort
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
1x Connector
Memory Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (SATA)
Internal I/O Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
LED Header:
4x RGB
Audio:
1x S/PDIF
Diagnostics:
Clear CMOS, Flash BIOS, Power, Reset
BIOS Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
ROM:
256 Mb
Front Panel I/O Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1
Audio Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth:
5.4
Software Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
OS Compatibility:
Windows 11
Physical Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard (Snow White)
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 305 x 244 mm
