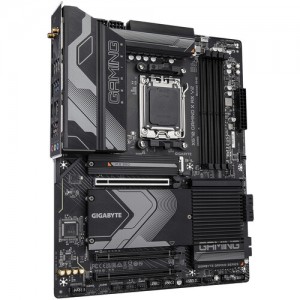

Gigabyte X670 GAMING X AX V2 AM5 ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte X670 GAMING X AX V2 AM5 ATX| Specifications | | | Reviews |
General Specs Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
Chipset:
AMD X670
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4)
3x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
3x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x2 mode)
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x2 mode)
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
Chipset:
AMD X670
CPU Socket:
AM5
Back Panel I/O Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2)
6x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
6x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4)
3x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
3x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
RAID Support:
RAID 0, 1, 10 (M.2)
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (SATA)
Internal I/O Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x2 mode)
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x2 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Diagnostics:
Clear CMOS, Power, Reset
Add-On:
1x Thunderbolt Card Header
BIOS Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
Audio Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.3
Software Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
OS Compatibility:
Windows 10 to 11
Physical Gigabyte X670 GAMING X AX V2 AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
