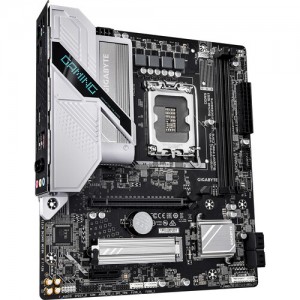

Gigabyte H810M GAMING WIFI6 LGA 1851 mATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte H810M GAMING WIFI6 LGA 1851 mATX| Specifications | | | Reviews |
General Specs Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
Chipset:
Intel H810
CPU Socket:
LGA 1851
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 5600, 6400 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x1
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
Form Factor:
Micro-ATX
CPU Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
Chipset:
Intel H810
CPU Socket:
LGA 1851
Back Panel I/O Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
5x USB-A (USB 2.0)
5x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector
Memory Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 5600, 6400 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
Internal I/O Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x1
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
2x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
TPM Header
LED Header:
2x RGB
Audio:
1x Speaker
1x S/PDIF
1x S/PDIF
Diagnostics:
2-Digit Debug LED, Clear CMOS, Flash BIOS
Legacy:
1x Serial
BIOS Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
Audio Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
Bluetooth:
5.3
Software Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical Gigabyte H810M GAMING WIFI6 LGA 1851 mATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 8.5" / 24.4 x 21.5 cm
