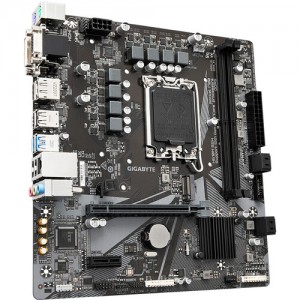

Gigabyte H610M S2H LGA 1700 Micro-ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte H610M S2H LGA 1700 Micro-ATX| Specifications | | | Reviews |
General Specs Gigabyte H610M S2H LGA 1700 Micro-ATX Motherboard
Chipset:
Intel H610
CPU Socket:
LGA 1700
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600 MT/s
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 3.0 x4, PCIe 3.0 x2)
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 3.0 x1 (x1 mode)
1x PCIe 3.0 x1 (x1 mode)
Wi-Fi:
No
Form Factor:
Micro-ATX
CPU Gigabyte H610M S2H LGA 1700 Micro-ATX Motherboard
Chipset:
Intel H610
CPU Socket:
LGA 1700
Back Panel I/O Gigabyte H610M S2H LGA 1700 Micro-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI Output
1x DisplayPort Output
1x DVI-D Output
1x VGA Output
1x DisplayPort Output
1x DVI-D Output
1x VGA Output
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek Gigabit
PS/2:
2x PS/2
Memory Gigabyte H610M S2H LGA 1700 Micro-ATX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600 MT/s
Maximum Capacity:
64 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion Gigabyte H610M S2H LGA 1700 Micro-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 3.0 x4, PCIe 3.0 x2)
Optane Memory Support:
No
RAID Support:
No
Internal I/O Gigabyte H610M S2H LGA 1700 Micro-ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 3.0 x1 (x1 mode)
1x PCIe 3.0 x1 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
2x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
Chassis Intrusion, TPM Header
LED Header:
1x RGB
Audio:
1x Speaker
Diagnostics:
Clear CMOS
Legacy:
1x Serial
Audio Gigabyte H610M S2H LGA 1700 Micro-ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte H610M S2H LGA 1700 Micro-ATX Motherboard
Wi-Fi:
No
Bluetooth:
No
Software Gigabyte H610M S2H LGA 1700 Micro-ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical Gigabyte H610M S2H LGA 1700 Micro-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.1 x 8.5" / 23 x 21.5 cm
