Gigabyte B860M D3HP LGA 1851 Micro-ATX specs

  Motherboards Specs >> GIGABYTE >> Gigabyte B860M D3HP LGA 1851 Micro-ATX
Specifications | Reviews

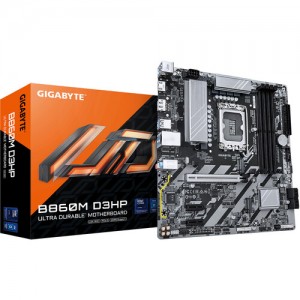

Gigabyte B860M D3HP LGA 1851 Micro-ATX



General Specs Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

Chipset:
Intel B860
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9066 MT/s
Storage Slots:
2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 3.0 x1
Wi-Fi:
No
Form Factor:
Micro-ATX

CPU Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

Chipset:
Intel B860
CPU Socket:
LGA 1851

Back Panel I/O Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

USB:?Universal Serial Bus
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
3x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Gigabit
PS/2:
1x Combo

Memory Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9066 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered

Storage Expansion Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)

Internal I/O Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 3.0 x1
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin CPU
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
Security:
TPM Header
LED Header:
3x RGB
Diagnostics:
Clear CMOS
Legacy:
1x Serial

BIOS Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

ROM:
256 Mb

Front Panel I/O Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1

Audio Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

Audio Codec:
Realtek (7.1-Channel)
DAC:
No

Wireless Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

Wi-Fi:
No
Bluetooth:
No

Software Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

OS Compatibility:
Windows 10 to 11 (64-Bit Only)

Physical Gigabyte B860M D3HP LGA 1851 Micro-ATX Motherboard

Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
