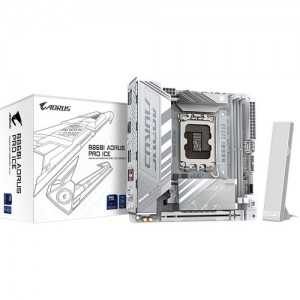

Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX specs
Motherboards Specs >> GIGABYTE >> Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX| Specifications | | | Reviews |
General Specs Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
Chipset:
Intel B860
CPU Socket:
LGA 1851
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9200 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
Mini-ITX
CPU Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
Chipset:
Intel B860
CPU Socket:
LGA 1851
Back Panel I/O Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus3x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
1x Thunderbolt 4
Display:
1x HDMI Output
1x DisplayPort Output
1x DisplayPort Output
Audio:
2x 1/8" / 3.5 mm
Ethernet / Controller:
1x 2.5Gigabit
Wi-Fi Antenna:
1x Connector
Memory Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9200 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment2x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1 (SATA)
Internal I/O Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin System
1x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 8-Pin CPU
Security:
TPM Header
Audio:
No
Diagnostics:
Clear CMOS, Flash BIOS, Reset
BIOS Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
Front Panel I/O:
USB 3.1/3.2 Gen 2
Audio Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Software Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
OS Compatibility:
Windows 11 (64-Bit Only)
Physical Gigabyte B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard
Form Factor:
Mini-ITX
Dimensions:
6.7 x 6.7" / 17 x 17 cm
