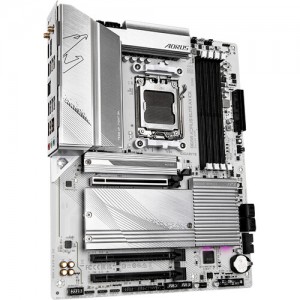

Gigabyte B650 AORUS ELITE AX ICE AM5 ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte B650 AORUS ELITE AX ICE AM5 ATX| Specifications | | | Reviews |
General Specs Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
Chipset:
AMD B650
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3500, 3600, 3800, 4000 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
2x PCIe 3.0 x16 (x1 mode)
2x PCIe 3.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) (2 x 2)
Form Factor:
ATX
CPU Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
Chipset:
AMD B650
CPU Socket:
AM5
Back Panel I/O Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
5x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
5x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1 Output
1x DisplayPort 1.4 Output
1x DisplayPort 1.4 Output
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek RTL8852CE 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3500, 3600, 3800, 4000 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4)
RAID Support:
RAID 0, 1, 10 (M.2)
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (SATA)
Internal I/O Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
2x PCIe 3.0 x16 (x1 mode)
2x PCIe 3.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port)
2x USB 2.0 Header (Supports 1 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port)
2x USB 2.0 Header (Supports 1 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 4-Pin ATX
1x 8-Pin ATX
1x 4-Pin ATX
Security:
TPM Header
LED Header:
3x RGB
Audio:
1x Speaker
Diagnostics:
Clear CMOS, Reset
BIOS Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
ROM:
256 Mb
Audio Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) (2 x 2)
Bluetooth:
5.3
Software Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
OS Compatibility:
Windows 10 or Later (64-Bit Only)
Physical Gigabyte B650 AORUS ELITE AX ICE AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
