Gigabyte B550M DS3H AC R2 AM4 Micro-ATX specs

  Motherboards Specs >> GIGABYTE >> Gigabyte B550M DS3H AC R2 AM4 Micro-ATX
Specifications | Reviews

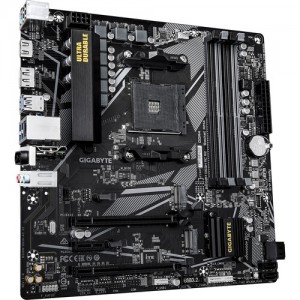

Gigabyte B550M DS3H AC R2 AM4 Micro-ATX



General Specs Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

Chipset:
AMD B550
CPU Socket:
AM4
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2667, 2933, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4733 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
1x M.2 (M Key) 2280 (PCIe 3.0 x2, SATA (Unspecified))
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Form Factor:
Micro-ATX

CPU Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

Chipset:
AMD B550
CPU Socket:
AM4

Back Panel I/O Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

USB:?Universal Serial Bus
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Gigabit
PS/2:
1x PS/2
Wi-Fi Antenna:
2x Connector

Memory Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2667, 2933, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4733 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered

Storage Expansion Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
1x M.2 (M Key) 2280 (PCIe 3.0 x2, SATA (Unspecified))
RAID Support:
RAID 0, 1, 10

Internal I/O Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x1
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
Security:
TPM Header
LED Header:
5x RGB
Audio:
No
Diagnostics:
Clear CMOS, Flash BIOS
Legacy:
1x Serial

BIOS Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

ROM:
128 Mb

Front Panel I/O Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1

Audio Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

Audio Codec:
Realtek ALC1220 (7.1-Channel)
DAC:
No

Wireless Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

Wi-Fi:
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth:
5.0

Software Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

OS Compatibility:
Windows 10 to 11 (64-Bit Only)

Physical Gigabyte B550M DS3H AC R2 AM4 Micro-ATX Motherboard

Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
