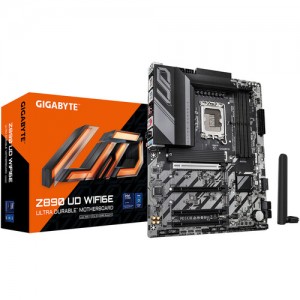

Gigabyte Z890 UD WIFI6E LGA 1851 ATX (Matte Black) specs
Motherboards Specs >> GIGABYTE >> Gigabyte Z890 UD WIFI6E LGA 1851 ATX (Matte Black)| Specifications | | | Reviews |
General Specs Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB4)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x DisplayPort 2.1
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek RTL8125 2.5Gigabit
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector
Memory Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (SATA)
Internal I/O Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
2x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
2x 4-Pin System
Liquid Cooling:
3x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Audio:
No
Diagnostics:
Clear CMOS, Reset
Add-On:
2x Thunderbolt Card Header
Legacy:
1x Serial
BIOS Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
ROM:
256 Mb
Front Panel I/O Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.3
Software Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
OS Compatibility:
Windows 11 (64-Bit Only)
Physical Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard (Matte Black)
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
