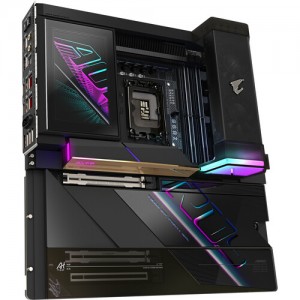

Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX| Specifications | | | Reviews |
General Specs Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200, 9333, 9600 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor:
E-ATX
CPU Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus10x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt:
2x Thunderbolt 5
Display:
No Dedicated Display Ports (Video Signal via USB-C)
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
2x Marvell AQtion AQC113C 10GbE
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, OC Ignition
Memory Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200, 9333, 9600 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10
Internal I/O Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x Thunderbolt 4 Header (Supports 1 USB-C Port)
2x USB 3.2 Gen 2x2 Header (Supports 2 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.2 Gen 2x2 Header (Supports 2 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin System
2x 4-Pin Assistant
1x Noise Sensor
2x Thermal Sensor
1x 4-Pin System
2x 4-Pin Assistant
1x Noise Sensor
2x Thermal Sensor
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
LED Header:
1x RGB
Audio:
No
Diagnostics:
Clear CMOS, Power, Reset
BIOS Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2, Thunderbolt 4
Audio Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
Audio Codec:
ESS ES9280 (2-Channel)
DAC:
ESS ES9280AC
Wireless Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth:
5.4
Module Support:
1 E Key M.2
Software Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
OS Compatibility:
Windows 11 or Later
Physical Gigabyte Z890 AORUS XTREME AI TOP LGA 1851 E-ATX Motherboard
Form Factor:
E-ATX
Dimensions:
12.00 x 12.0" / 30.48 x 30.5 cm
