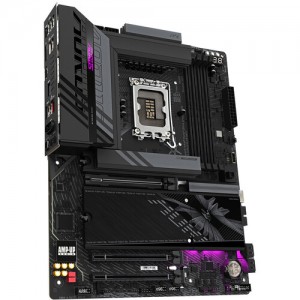

Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX (Matte Black) specs
Motherboards Specs >> GIGABYTE >> Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX (Matte Black)| Specifications | | | Reviews |
General Specs Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor:
ATX
CPU Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
USB:
Universal Serial Bus
Universal Serial Bus2x USB-A (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
1x Thunderbolt 4
Display:
1x DisplayPort
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
1x Connector
Memory Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (SATA)
Internal I/O Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
LED Header:
4x RGB
Audio:
1x S/PDIF
Diagnostics:
Clear CMOS, Flash BIOS, Power, Reset
BIOS Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
ROM:
256 Mb
Front Panel I/O Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1
Audio Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth:
5.4
Software Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
OS Compatibility:
Windows 11
Physical Gigabyte Z890 AORUS ELITE WIFI7 LGA 1851 ATX Motherboard (Matte Black)
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 305 x 244 mm
