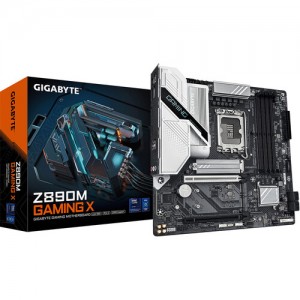

Gigabyte Z890M GAMING X LGA 1851 Micro-ATX (Matte Black) specs
Motherboards Specs >> GIGABYTE >> Gigabyte Z890M GAMING X LGA 1851 Micro-ATX (Matte Black)| Specifications | | | Reviews |
General Specs Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 2580 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
No
Form Factor:
Micro-ATX
CPU Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
USB:
Universal Serial Bus
Universal Serial Bus3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
2x DisplayPort 2.1
2x DisplayPort 2.1
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek RTL8125 2.5Gigabit
PS/2:
1x Combo
Memory Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 2580 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (SATA)
Internal I/O Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin System
1x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
TPM Header
LED Header:
3x RGB
Audio:
No
Diagnostics:
Clear CMOS
Add-On:
2x Thunderbolt Card Header
Legacy:
1x Serial
BIOS Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
ROM:
256 Mb
Front Panel I/O Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
Wi-Fi:
No
Bluetooth:
No
Software Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical Gigabyte Z890M GAMING X LGA 1851 Micro-ATX Motherboard (Matte Black)
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
