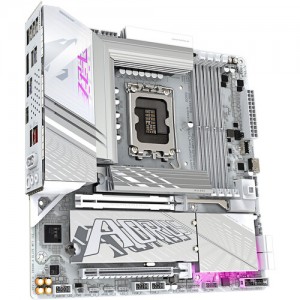

Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX (Snow White) specs
Motherboards Specs >> GIGABYTE >> Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX (Snow White)| Specifications | | | Reviews |
General Specs Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 2580 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 2580 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 2580 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
Micro-ATX
CPU Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
Chipset:
Intel Z890
CPU Socket:
LGA 1851
Back Panel I/O Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB4)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x DisplayPort 2.1
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek RTL8125 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Memory Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 2580 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280, 2580 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 2580 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (SATA)
Internal I/O Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Audio:
No
Diagnostics:
Clear CMOS, Reset
BIOS Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
ROM:
256 Mb
Front Panel I/O Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
Front Panel I/O:
AAFP, USB 3.1/3.2 Gen 2, HDMI
Audio Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No
Wireless Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.4
Software Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
OS Compatibility:
Windows 11 (64-Bit Only)
Physical Gigabyte Z890M AORUS ELITE WIFI7 ICE LGA 1851 Micro-ATX Motherboard (Snow White)
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
