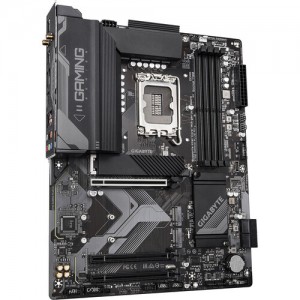

General Specs Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MT/s
Storage Slots:
3x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
2x PCIe 3.0 x16 (x1 mode)
2x PCIe 3.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Form Factor:
ATX
CPU Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Back Panel I/O Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
5x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
5x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
6x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Memory Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
3x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
2x PCIe 3.0 x16 (x1 mode)
2x PCIe 3.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Audio:
1x S/PDIF
Diagnostics:
Clear CMOS, Flash BIOS, Reset
Legacy:
1x Serial
BIOS Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
Front Panel I/O:
AAFP
Audio Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
Audio Codec:
Realtek CODEC (7.1-Channel)
DAC:
No
Wireless Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth:
5.3
Software Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical Gigabyte Z790 GAMING PLUS AX LGA 1700 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
