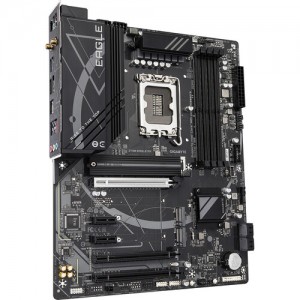

Gigabyte Z790 EAGLE AX LGA 1700 ATX



General Specs Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
2x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Form Factor:
ATX

CPU Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

Chipset:
Intel Z790
CPU Socket:
LGA 1700

Back Panel I/O Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback, Power / Reset

Memory Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)

Internal I/O Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
2x PCIe 3.0 x1
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
Security:
TPM Header
LED Header:
2x RGB
Audio:
1x S/PDIF
Diagnostics:
Clear CMOS, Flash BIOS
Add-On:
2x Thunderbolt Card Header
Legacy:
1x Serial

BIOS Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

ROM:
256 Mb

Front Panel I/O Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1

Audio Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

Audio Codec:
Realtek (7.1-Channel)
DAC:
No

Wireless Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth:
5.3

Software Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

OS Compatibility:
Windows 10 to 11 (64-Bit Only)

Physical Gigabyte Z790 EAGLE AX LGA 1700 ATX Motherboard

Form Factor:
ATX
Dimensions:
9.6 x 12.0" / 24.4 x 30.5 cm
