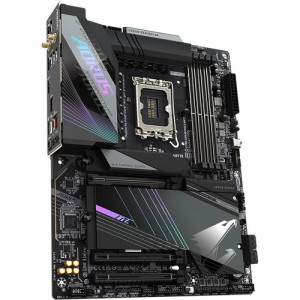

Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX (Black) specs
Motherboards Specs >> GIGABYTE >> Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX (Black)| Specifications | | | Reviews |
General Specs Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266 MT/s
Storage Slots:
1x M.2 (M Key) 2580, 25110 (PCIe 5.0 x4)
2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor:
ATX
CPU Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Back Panel I/O Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 5GbE
Wi-Fi Antenna:
2x Connector
Memory Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2580, 25110 (PCIe 5.0 x4)
2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2, SATA III)
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 2.0 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 2.0 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
1x Noise Sensor
2x Thermal Sensor
1x Noise Sensor
4x 4-Pin System
1x Noise Sensor
2x Thermal Sensor
1x Noise Sensor
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Diagnostics:
Clear CMOS, Flash BIOS, Reset
Add-On:
2x Thunderbolt Card Header
BIOS Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
ROM:
256 Mb
Front Panel I/O Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
Audio Codec:
Realtek ALC-1220-VB (7.1-Channel)
DAC:
No
Wireless Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth:
5.3
Software Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
OS Compatibility:
Windows 11
Physical Gigabyte Z790 AORUS PRO X WIFI7 LGA1700 ATX Motherboard (Black)
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
