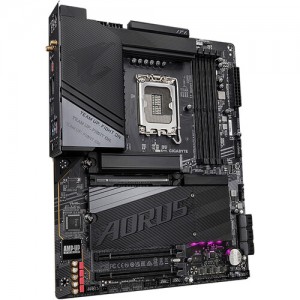

Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX| Specifications | | | Reviews |
General Specs Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266 MT/s
Storage Slots:
3x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA III)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor:
ATX
CPU Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
Chipset:
Intel Z790
CPU Socket:
LGA 1700
Back Panel I/O Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.2 Gen 2x2)
2x USB-A (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.0
1x DisplayPort
1x DisplayPort
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Intel 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Memory Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment6x SATA III
Storage Slots:
3x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, SATA III)
RAID Support:
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x16 (x4 mode)
2x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Diagnostics:
Clear CMOS, Flash BIOS, Reset
Add-On:
2x Thunderbolt Header
BIOS Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
Audio Codec:
Realtek ALC1220-VB (7.1-Channel)
DAC:
No
Wireless Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth:
5.3
Software Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
OS Compatibility:
Windows 11
Physical Gigabyte Z790 AORUS ELITE X WIFI7 LGA 1700 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
