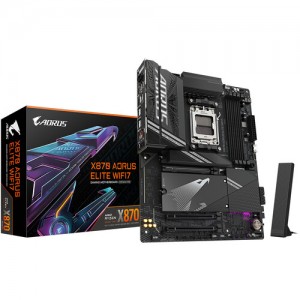

Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX| Specifications | | | Reviews |
General Specs Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
Chipset:
AMD X870
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x2 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x2 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor:
ATX
CPU Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
Chipset:
AMD X870
CPU Socket:
AM5
Back Panel I/O Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-C (USB4)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10 (SATA)
Internal I/O Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x2 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x2 mode)
USB:Universal Serial Bus
Universal Serial Bus2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 4-Pin ATX
1x 8-Pin ATX
1x 4-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Audio:
No
Diagnostics:
Clear CMOS, Power, Reset
BIOS Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
Front Panel I/O:
AAFP
Audio Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth:
5.4
Software Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
OS Compatibility:
Windows 11
Physical Gigabyte X870 AORUS ELITE WIFI7 AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
