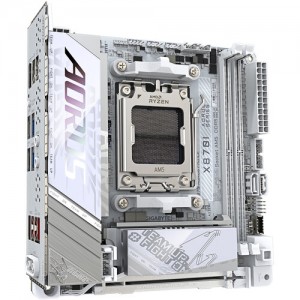

Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX specs
Motherboards Specs >> GIGABYTE >> Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX| Specifications | | | Reviews |
General Specs Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
Chipset:
AMD X870
CPU Socket:
AM5
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000, 8200, 8400 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor:
Mini-ITX
CPU Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
Chipset:
AMD X870
CPU Socket:
AM5
Back Panel I/O Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB4)
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
Audio:
2x 1/8" / 3.5 mm
Ethernet / Controller:
1
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000, 8200, 8400 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment2x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (SATA)
Internal I/O Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin System
1x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
Chassis Intrusion
LED Header:
3x RGB
Diagnostics:
Clear CMOS, Reset
BIOS Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
Front Panel I/O:
AAFP
Audio Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
Audio Codec:
Realtek ALC4080 (2-Channel)
DAC:
No
Wireless Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth:
5.4
Software Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
OS Compatibility:
Windows 11
Physical Gigabyte X870I AORUS PRO ICE AM5 Mini-ITX Motherboard
Form Factor:
Mini-ITX
Dimensions:
6.7 x 6.7" / 17 x 17 cm
