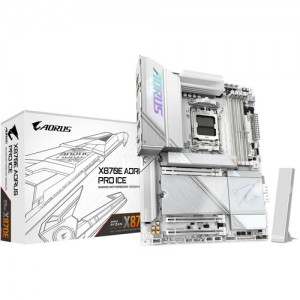

General Specs Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
Chipset:
AMD X870E
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor:
ATX
CPU Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
Chipset:
AMD X870E
CPU Socket:
AM5
Back Panel I/O Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-C (USB4)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
3x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (SATA)
Internal I/O Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
3x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
TPM Header
LED Header:
4x RGB
BIOS Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
Front Panel I/O:
AAFP
Audio Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
Audio Codec:
Realtek ALC1220 (7.1-Channel)
DAC:
No
Wireless Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth:
5.3
Software Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
OS Compatibility:
Windows 11 (64-Bit Only)
Physical Gigabyte X870E AORUS PRO ICE AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
