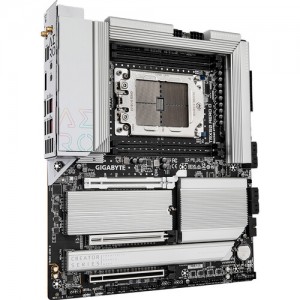

Gigabyte TRX50 AERO D sTR5 E-ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte TRX50 AERO D sTR5 E-ATX| Specifications | | | Reviews |
General Specs Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
Chipset:
AMD TRX50
CPU Socket:
sTR5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6400, 6800, 7000, 7200, 7600, 7800 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
2x PCIe 5.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x16 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) (2 x 2)
Form Factor:
E-ATX
CPU Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
Chipset:
AMD TRX50
CPU Socket:
sTR5
Back Panel I/O Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-C (USB4)
4x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt:
No
Display:
1x DisplayPort Input
Audio:
2x 1/8" / 3.5 mm
Ethernet / Controller:
1x 10GbE
1x 2.5Gigabit
1x 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6400, 6800, 7000, 7200, 7600, 7800 MT/s
Maximum Capacity:
1 TB
Channel Architecture:
Quad Channel
ECC Support:
ECC Buffered
Storage Expansion Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment8x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
RAID Support:
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (M.2)
RAID 0, 1, 10 (M.2)
Internal I/O Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
Expansion Slots:
2x PCIe 5.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x16 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port)
2x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port)
2x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
1x 4-Pin CPU
4x 4-Pin System
4x 4-Pin System
Liquid Cooling:
5x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin ATX
2x 8-Pin ATX
Security:
TPM Module, TPM Header
LED Header:
1x RGB
Audio:
1x Speaker
Diagnostics:
Clear CMOS, Reset
BIOS Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
ROM:
256 Mb
Audio Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
Audio Codec:
Realtek ALC4080 (2-Channel)
DAC:
No
Wireless Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) (2 x 2)
Bluetooth:
5.3
Software Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
OS Compatibility:
Windows 11 (64-Bit Only)
Physical Gigabyte TRX50 AERO D sTR5 E-ATX Motherboard
Form Factor:
E-ATX
Dimensions:
12.0 x 10.4" / 30.5 x 26.4 cm
