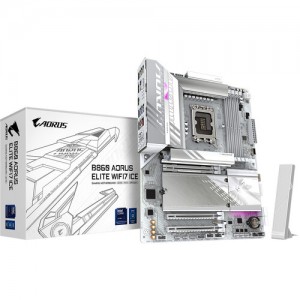

Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX| Specifications | | | Reviews |
General Specs Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
Chipset:
Intel B860
CPU Socket:
LGA 1851
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8800, 9200 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x1
2x PCIe 4.0 x1
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor:
ATX
CPU Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
Chipset:
Intel B860
CPU Socket:
LGA 1851
Back Panel I/O Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI Output
1x DisplayPort Output
1x DisplayPort Output
Audio:
2x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
1x Connector
Memory Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8800, 9200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)
Internal I/O Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
2x PCIe 4.0 x1
2x PCIe 4.0 x1
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
2x 8-Pin CPU
2x 8-Pin CPU
Security:
TPM Header
LED Header:
4x RGB
Audio:
No
Diagnostics:
Clear CMOS, Flash BIOS, Power, Reset
BIOS Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
Front Panel I/O:
USB 3.1/3.2 Gen 2
Audio Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth:
5.4
Software Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
OS Compatibility:
Windows 11 (64-Bit Only)
Physical Gigabyte B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
