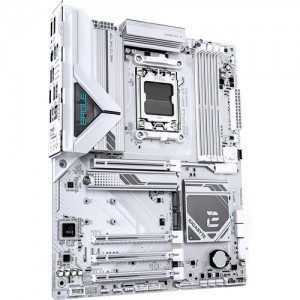

General Specs Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX
CPU Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Back Panel I/O Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10 (SATA)
Internal I/O Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
5x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 4-Pin ATX
1x 8-Pin CPU
1x 4-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Audio:
1x Speaker
Diagnostics:
2-Digit Debug LED, Clear CMOS, Flash BIOS, Reset
BIOS Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
Audio Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Software Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
OS Compatibility:
Windows 11 (64-Bit Only)
Physical Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
