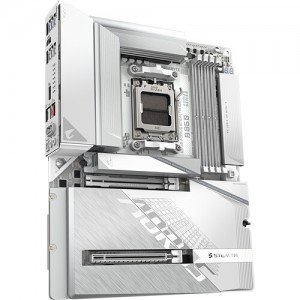

Gigabyte B850 AORUS STEALTH ICE AM5 ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte B850 AORUS STEALTH ICE AM5 ATX| Specifications | | | Reviews |
General Specs Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor:
ATX
CPU Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Back Panel I/O Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 5GbE
Wi-Fi Antenna:
2x Connector
Memory Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment2x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4, PCIe 5.0 x2, PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1 (SATA)
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 5, 10 (M.2)
Internal I/O Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
5x 4-Pin System
1x Noise Sensor
2x Thermal Sensor
5x 4-Pin System
1x Noise Sensor
2x Thermal Sensor
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 4-Pin ATX
1x 8-Pin CPU
1x 4-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Audio:
1x Speaker
Diagnostics:
2-Digit Debug LED, Clear CMOS, Flash BIOS, Power, Reset
BIOS Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
ROM:
512 Mb
Front Panel I/O Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
Front Panel I/O:
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
Audio Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
Audio Codec:
Realtek ALC1220 (7.1-Channel)
DAC:
No
Wireless Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth:
5.4
Software Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
OS Compatibility:
Windows 11 (64-Bit Only)
Physical Gigabyte B850 AORUS STEALTH ICE AM5 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
