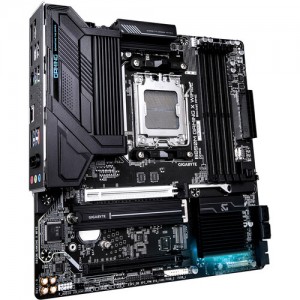

Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX| Specifications | | | Reviews |
General Specs Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 3.0 x4
1x PCIe 3.0 x4
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Form Factor:
Micro-ATX
CPU Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Back Panel I/O Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI Output
2x DisplayPort Output
2x DisplayPort Output
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x 2.5Gigabit
Wi-Fi Antenna:
1x Connector
Buttons:
BIOS Flashback
Memory Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (SATA)
Internal I/O Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 3.0 x4
1x PCIe 3.0 x4
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin System
1x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 8-Pin CPU
Security:
TPM Header
LED Header:
4x RGB
Diagnostics:
Clear CMOS, Reset
BIOS Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
ROM:
256 Mb
Audio Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth:
5.3
Software Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
