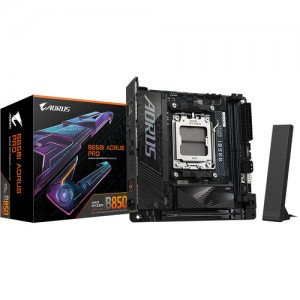

Gigabyte B850I AORUS PRO AM5 Mini-ITX specs
Motherboards Specs >> GIGABYTE >> Gigabyte B850I AORUS PRO AM5 Mini-ITX| Specifications | | | Reviews |
General Specs Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8400 MT/s
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor:
Mini-ITX
CPU Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
Chipset:
AMD B850
CPU Socket:
AM5
Back Panel I/O Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI Output
Audio:
2x 1/8" / 3.5 mm
Ethernet / Controller:
1x 2.5Gigabit
Wi-Fi Antenna:
1x Connector
Buttons:
BIOS Flashback
Memory Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8400 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment2x SATA III
Storage Slots:
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
RAID Support:
RAID 0, 1, 5, 10 (M.2)
RAID 0, 1 (SATA)
RAID 0, 1 (SATA)
Internal I/O Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
Expansion Slots:
1x PCIe 5.0 x16
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
1x 4-Pin System
1x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 8-Pin CPU
Security:
Chassis Intrusion
LED Header:
3x RGB
Diagnostics:
Clear CMOS, Reset
BIOS Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
ROM:
256 Mb
Audio Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
Audio Codec:
Realtek ALC4080 (2-Channel)
DAC:
No
Wireless Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
Wi-Fi:
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth:
5.4
Software Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
OS Compatibility:
Windows 11 (64-Bit Only)
Physical Gigabyte B850I AORUS PRO AM5 Mini-ITX Motherboard
Form Factor:
Mini-ITX
Dimensions:
6.7 x 6.7" / 17 x 17 cm
