Gigabyte B760 DS3H AX V2 LGA 1700 ATX specs

  Motherboards Specs >> GIGABYTE >> Gigabyte B760 DS3H AX V2 LGA 1700 ATX
Specifications | Reviews

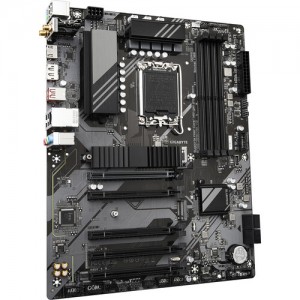

Gigabyte B760 DS3H AX V2 LGA 1700 ATX



General Specs Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

Chipset:
Intel B760
CPU Socket:
LGA 1700
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6800, 7000, 7200, 7400, 7600 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Form Factor:
ATX

CPU Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

Chipset:
Intel B760
CPU Socket:
LGA 1700

Back Panel I/O Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Gigabit
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector

Memory Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6800, 7000, 7200, 7400, 7600 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
ECC, ECC (Non-ECC Mode) Unbuffered

Storage Expansion Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 5, 10 (SATA)

Internal I/O Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Audio:
1x S/PDIF
Diagnostics:
Clear CMOS, Flash BIOS, Reset
Legacy:
1x Serial

BIOS Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

ROM:
128 Mb

Front Panel I/O Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

Front Panel I/O:
AAFP

Audio Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

Audio Codec:
Realtek CODEC (7.1-Channel)
DAC:
No

Wireless Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth:
5.3

Software Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

OS Compatibility:
Windows 10 to 11 (64-Bit Only)

Physical Gigabyte B760 DS3H AX V2 LGA 1700 ATX Motherboard

Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
