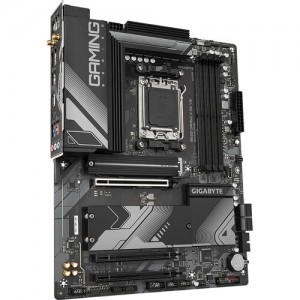

Gigabyte B650 GAMING X AX V2 ATX AM5 B650 GAMING X AX V2 specs
Motherboards Specs >> GIGABYTE >> Gigabyte B650 GAMING X AX V2 ATX AM5 B650 GAMING X AX V2| Specifications | | | Reviews |
General Specs Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
Chipset:
AMD B650
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Storage Slots:
1x M.2 (M Key) 2580, 25110 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
2x PCIe 3.0 x16 (x1 mode)
2x PCIe 3.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Form Factor:
ATX
CPU Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
Chipset:
AMD B650
CPU Socket:
AM5
Back Panel I/O Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
3x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
3x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2580, 25110 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
2x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
RAID Support:
No
Internal I/O Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
Expansion Slots:
1x PCIe 4.0 x16
2x PCIe 3.0 x16 (x1 mode)
2x PCIe 3.0 x16 (x1 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
2x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 4-Pin ATX
1x 8-Pin ATX
1x 4-Pin ATX
Security:
TPM Header
LED Header:
5x RGB
Diagnostics:
Clear CMOS, Reset
Legacy:
1x Serial
BIOS Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
ROM:
256 Mb
Front Panel I/O Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
Audio Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth:
5.3
Software Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical Gigabyte B650 GAMING X AX V2 ATX AM5 Motherboard B650 GAMING X AX V2
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
