Gigabyte B650 EAGLE AX ATX AM5 specs

  Motherboards Specs >> GIGABYTE >> Gigabyte B650 EAGLE AX ATX AM5
Specifications | Reviews

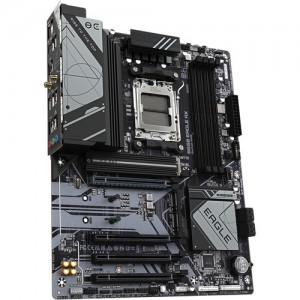

Gigabyte B650 EAGLE AX ATX AM5



General Specs Gigabyte B650 EAGLE AX ATX AM5 Motherboard

Chipset:
AMD B650
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s
Storage Slots:
1x M.2 (M Key) 22110, 2580 (PCIe 5.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
3x PCIe 3.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Form Factor:
ATX

CPU Gigabyte B650 EAGLE AX ATX AM5 Motherboard

Chipset:
AMD B650
CPU Socket:
AM5

Back Panel I/O Gigabyte B650 EAGLE AX ATX AM5 Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 3.1/3.2 Gen 2)
6x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Gigabit
PS/2:
1x Combo
Wi-Fi Antenna:
2x Connector

Memory Gigabyte B650 EAGLE AX ATX AM5 Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion Gigabyte B650 EAGLE AX ATX AM5 Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 22110, 2580 (PCIe 5.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (M.2)

Internal I/O Gigabyte B650 EAGLE AX ATX AM5 Motherboard

Expansion Slots:
1x PCIe 4.0 x16
3x PCIe 3.0 x16 (x1 mode)
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
3x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
Security:
TPM Header
LED Header:
1x RGB
Diagnostics:
Clear CMOS, Flash BIOS
Legacy:
1x Serial

BIOS Gigabyte B650 EAGLE AX ATX AM5 Motherboard

ROM:
256 Mb

Front Panel I/O Gigabyte B650 EAGLE AX ATX AM5 Motherboard

Front Panel I/O:
USB 3.0 / 3.1/3.2 Gen 1

Audio Gigabyte B650 EAGLE AX ATX AM5 Motherboard

Audio Codec:
Realtek (7.1-Channel)
DAC:
No

Wireless Gigabyte B650 EAGLE AX ATX AM5 Motherboard

Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth:
5.3

Software Gigabyte B650 EAGLE AX ATX AM5 Motherboard

OS Compatibility:
Windows 10 to 11 (64-Bit Only)

Physical Gigabyte B650 EAGLE AX ATX AM5 Motherboard

Form Factor:
ATX
Dimensions:
9.6 x 12.0" / 24.4 x 30.5 cm
