Gigabyte B650 AORUS ELITE AX V2 AM5 ATX specs

  Motherboards Specs >> GIGABYTE >> Gigabyte B650 AORUS ELITE AX V2 AM5 ATX
Specifications | Reviews

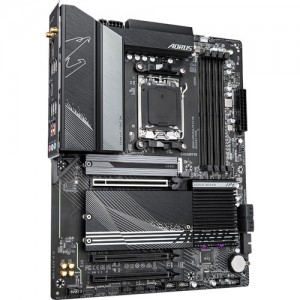

Gigabyte B650 AORUS ELITE AX V2 AM5 ATX



General Specs Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

Chipset:
AMD B650
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 2133, 2400, 2600, 2800, 3000, 3066, 3200, 3300, 3333, 3400, 3500, 3600, 3800, 4000 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4)
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
2x PCIe 3.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 6E (802.11ax)   (2 x 2)
Form Factor:
ATX

CPU Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

Chipset:
AMD B650
CPU Socket:
AM5

Back Panel I/O Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
5x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback

Memory Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 2133, 2400, 2600, 2800, 3000, 3066, 3200, 3300, 3333, 3400, 3500, 3600, 3800, 4000 MT/s
Maximum Capacity:
192 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 25110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4)
1x M.2 (M Key) 2280, 25110 (PCIe 4.0 x4)
RAID Support:
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (M.2)

Internal I/O Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
2x PCIe 3.0 x16 (x1 mode)
USB:?Universal Serial Bus
1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-A Port)
2x USB 2.0 Header (Supports 1 USB-A Port)
Air Cooling:
3x 4-Pin System
2x 4-Pin CPU
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 4-Pin ATX
Security:
TPM Header
LED Header:
4x RGB
Diagnostics:
Clear CMOS, Reset

BIOS Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

ROM:
256 Mb

Audio Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

Audio Codec:
Realtek ALC897 (7.1-Channel)
DAC:
No

Wireless Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

Wi-Fi:
Wi-Fi 6E (802.11ax)   (2 x 2)
Bluetooth:
5.3

Software Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

OS Compatibility:
Windows 10 (64-Bit Only)
Windows 11 (64-Bit Only)

Physical Gigabyte B650 AORUS ELITE AX V2 AM5 ATX Motherboard

Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
