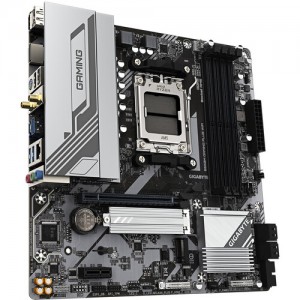

Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX| Specifications | | | Reviews |
General Specs Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
Chipset:
AMD B650
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s
Storage Slots:
1x M.2 (M Key) 2580 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x1
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support (2 x 2)
Form Factor:
Micro-ATX
CPU Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
Chipset:
AMD B650
CPU Socket:
AM5
Back Panel I/O Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI 2.1
2x DisplayPort 1.4
2x DisplayPort 1.4
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
PS/2:
1x PS/2
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2580 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (M.2)
RAID 0, 1, 10 (M.2)
Internal I/O Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x1
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
2x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 8-Pin CPU
Security:
Chassis Intrusion, TPM Header
LED Header:
1x RGB
Diagnostics:
Clear CMOS
Front Panel I/O Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
Front Panel I/O:
AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax) with MU-MIMO Support (2 x 2)
Bluetooth:
5.3
Software Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
