Gigabyte B650M C V3 AM5 Micro-ATX specs

  Motherboards Specs >> GIGABYTE >> Gigabyte B650M C V3 AM5 Micro-ATX
Specifications | Reviews

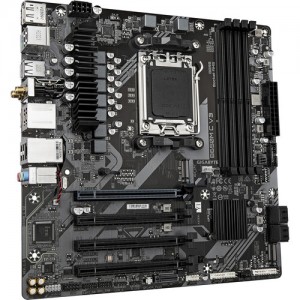

Gigabyte B650M C V3 AM5 Micro-ATX



General Specs Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

Chipset:
AMD B650
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s
Storage Slots:
1x M.2 (M Key) 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 3.0 x2)
1x M.2 (M Key) 2260 (PCIe 3.0 x1)
Expansion Slots:
1x PCIe 4.0 x16
3x PCIe 3.0 x16 (x1 mode)
Wi-Fi:
Wi-Fi 6 (802.11ax)
Form Factor:
Micro-ATX

CPU Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

Chipset:
AMD B650
CPU Socket:
AM5

Back Panel I/O Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

USB:?Universal Serial Bus
1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 3.1/3.2 Gen 2)
6x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1
PS/2:
1x Combo

Memory Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered

Storage Expansion Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

SATA:?Serial Advanced Technology Attachment
4x SATA III
Storage Slots:
1x M.2 (M Key) 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280 (PCIe 3.0 x2)
1x M.2 (M Key) 2260 (PCIe 3.0 x1)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (M.2)

Internal I/O Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

Expansion Slots:
1x PCIe 4.0 x16
3x PCIe 3.0 x16 (x1 mode)
USB:?Universal Serial Bus
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
3x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
Security:
TPM Header
LED Header:
2x RGB
Audio:
No
Diagnostics:
Clear CMOS, Flash BIOS
Legacy:
1x Serial

BIOS Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

ROM:
256 Mb

Front Panel I/O Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

Front Panel I/O:
AAFP

Audio Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

Audio Codec:
Realtek CODEC (7.1-Channel)
DAC:
No

Wireless Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

Wi-Fi:
Wi-Fi 6 (802.11ax)
Bluetooth:
5.3

Software Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

OS Compatibility:
Windows 10 to 11 (64-Bit Only)

Physical Gigabyte B650M C V3 AM5 Micro-ATX Motherboard

Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
