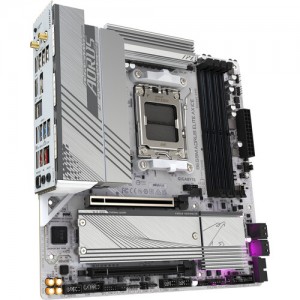

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX| Specifications | | | Reviews |
General Specs Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
Chipset:
AMD B650
CPU Socket:
AM5
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz)
Form Factor:
Micro-ATX
CPU Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
Chipset:
AMD B650
CPU Socket:
AM5
Back Panel I/O Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.1/3.2 Gen 2)
5x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
5x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
2x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Maximum Capacity:
256 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (M.2)
RAID 0, 1, 10 (M.2)
Internal I/O Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x4 mode)
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
2x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
TPM Header
LED Header:
5x RGB
Audio:
No
Diagnostics:
Clear CMOS, Reset
Add-On:
1x Thunderbolt Card Header
Legacy:
1x Serial
BIOS Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
ROM:
256 Mb
Front Panel I/O Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
Front Panel I/O:
AAFP
Audio Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
Audio Codec:
Realtek CODEC (7.1-Channel)
DAC:
No
Wireless Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
Wi-Fi:
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth:
5.3
Software Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
Form Factor:
Micro-ATX
Dimensions:
9.6 x 9.6" / 24.4 x 24.4 cm
