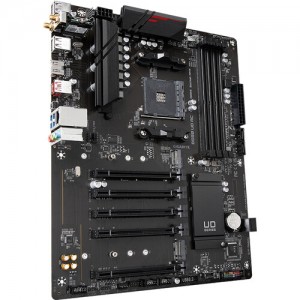

Gigabyte B550 UD AC ATX AM4 specs
Motherboards Specs >> GIGABYTE >> Gigabyte B550 UD AC ATX AM4| Specifications | | | Reviews |
General Specs Gigabyte B550 UD AC ATX AM4 Motherboard
Chipset:
AMD B550
CPU Socket:
AM4
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2667, 2933, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4733 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
4x PCIe 3.0 x1
4x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
Form Factor:
ATX
CPU Gigabyte B550 UD AC ATX AM4 Motherboard
Chipset:
AMD B550
CPU Socket:
AM4
Back Panel I/O Gigabyte B550 UD AC ATX AM4 Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte B550 UD AC ATX AM4 Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2667, 2933, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4733 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC Unbuffered
Storage Expansion Gigabyte B550 UD AC ATX AM4 Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10 (SATA)
Internal I/O Gigabyte B550 UD AC ATX AM4 Motherboard
Expansion Slots:
1x PCIe 4.0 x16
4x PCIe 3.0 x1
4x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 8-Pin CPU
Security:
TPM Module
LED Header:
5x RGB
Diagnostics:
Clear CMOS
BIOS Gigabyte B550 UD AC ATX AM4 Motherboard
ROM:
128 Mb
Front Panel I/O Gigabyte B550 UD AC ATX AM4 Motherboard
Front Panel I/O:
AAFP
Audio Gigabyte B550 UD AC ATX AM4 Motherboard
Audio Codec:
Realtek (7.1-Channel)
DAC:
No
Wireless Gigabyte B550 UD AC ATX AM4 Motherboard
Wi-Fi:
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
Bluetooth:
5.0
Software Gigabyte B550 UD AC ATX AM4 Motherboard
OS Compatibility:
Windows 10 to 11
Physical Gigabyte B550 UD AC ATX AM4 Motherboard
Form Factor:
ATX
Dimensions:
9.6 x 12.0" / 24.4 x 30.5 cm
