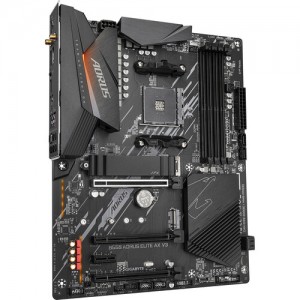

Gigabyte B550 AORUS ELITE AX V3 AM4 ATX specs
Motherboards Specs >> GIGABYTE >> Gigabyte B550 AORUS ELITE AX V3 AM4 ATX| Specifications | | | Reviews |
General Specs Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
Chipset:
AMD B550
CPU Socket:
AM4
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2667, 2933, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4733 MT/s
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x2 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
1x PCIe 3.0 x16 (x2 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Form Factor:
ATX
CPU Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
Chipset:
AMD B550
CPU Socket:
AM4
Back Panel I/O Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus2x USB-A (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
3x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2x USB-A (USB 2.0)
Thunderbolt:
No
Display:
1x HDMI
1x DisplayPort
1x DisplayPort
Audio:
5x 1/8" / 3.5 mm
1x S/PDIF
1x S/PDIF
Ethernet / Controller:
1
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
Memory Slots:
4x 288-Pin
Memory Support:
DDR4 2133, 2400, 2667, 2933, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4733 MT/s
Maximum Capacity:
128 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC (Non-ECC Mode) Unbuffered
Storage Expansion Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2)
Optane Memory Support:
No
RAID Support:
RAID 0, 1, 10
Internal I/O Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
1x PCIe 3.0 x16 (x2 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
1x PCIe 3.0 x16 (x2 mode)
1x PCIe 3.0 x16 (x1 mode)
1x PCIe 3.0 x1
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling:
1x 4-Pin CPU
3x 4-Pin System
3x 4-Pin System
Liquid Cooling:
1x 4-Pin Pump
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
TPM Header
LED Header:
5x RGB
Audio:
No
Diagnostics:
Clear CMOS
BIOS Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
ROM:
128 Mb
Front Panel I/O Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
Front Panel I/O:
AAFP
Audio Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
Audio Codec:
Realtek CODEC (7.1-Channel)
DAC:
No
Wireless Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
Wi-Fi:
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth:
5.3
Software Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
OS Compatibility:
Windows 10 to 11 (64-Bit Only)
Physical Gigabyte B550 AORUS ELITE AX V3 AM4 ATX Motherboard
Form Factor:
ATX
Dimensions:
12.0 x 9.6" / 30.5 x 24.4 cm
