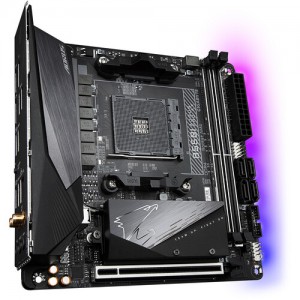

Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX specs
Motherboards Specs >> GIGABYTE >> Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX| Specifications | | | Reviews |
General Specs Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
Chipset:
AMD B550
CPU Socket:
AM4
Memory Slots:
2x 288-Pin
Memory Support:
DDR4 2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4600, 4866, 5000, 5100, 5200, 5300 MT/s
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
1x M.2 (M Key) 2260, 2280 (PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
1x M.2 (M Key) 2260, 2280 (PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
Expansion Slots:
1x PCIe 4.0 x16
Wi-Fi:
Wi-Fi 6 (802.11ax)
Form Factor:
Mini-ITX
CPU Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
Chipset:
AMD B550
CPU Socket:
AM4
Back Panel I/O Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
USB:
Universal Serial Bus
Universal Serial Bus1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Display:
2x HDMI
1x DisplayPort
1x DisplayPort
Audio:
3x 1/8" / 3.5 mm
Ethernet / Controller:
1x Realtek 2.5Gigabit
Wi-Fi Antenna:
2x Connector
Buttons:
BIOS Flashback
Memory Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
Memory Slots:
2x 288-Pin
Memory Support:
DDR4 2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4600, 4866, 5000, 5100, 5200, 5300 MT/s
Maximum Capacity:
64 GB
Channel Architecture:
Dual Channel
ECC Support:
Non-ECC, ECC Unbuffered
Storage Expansion Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
SATA:Serial Advanced Technology Attachment
Serial Advanced Technology Attachment4x SATA III
Storage Slots:
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
1x M.2 (M Key) 2260, 2280 (PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
1x M.2 (M Key) 2260, 2280 (PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
RAID Support:
RAID 0, 1, 10
Internal I/O Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
Expansion Slots:
1x PCIe 4.0 x16
USB:Universal Serial Bus
Universal Serial Bus1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling:
1x 4-Pin CPU
2x 4-Pin System
2x 4-Pin System
Power Connectors:
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 8-Pin ATX
Security:
TPM Module
LED Header:
2x RGB
Diagnostics:
Clear CMOS
BIOS Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
ROM:
256 Mb
Audio Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
Audio Codec:
Realtek ALC1220-VB (7.1-Channel)
Wireless Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
Wi-Fi:
Wi-Fi 6 (802.11ax)
Bluetooth:
5.0
Software Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
OS Compatibility:
Windows 10
Physical Gigabyte B550I AORUS PRO AX Wi-Fi AM4 Mini-ITX Motherboard
Form Factor:
Mini-ITX
Dimensions:
6.7 x 6.7" / 17.0 x 17.0 cm
