EVGA 270-WS-W555-A1 specs

  Motherboards Specs >> EVGA >> EVGA 270-WS-W555-A1
Specifications | Reviews

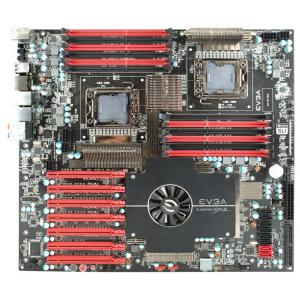

EVGA 270-WS-W555-A1



Processor EVGA 270-WS-W555-A1

Socket:
2xLGA1366
Processors supported:
Intel Xeon 5600, 5500 series
System bus:
QuickPath Interconnect
Support for multi-core processors:
yes

Chipset EVGA 270-WS-W555-A1

Chipset:
Intel 5520
BIOS:
AMI
SLI/CrossFire:?Scalable Link Interface
SLI/CrossFireX

Memory EVGA 270-WS-W555-A1

Memory:
DDR3 DIMM 800 - 1333 MHz
Memory type:
ECC/non-ECC
Number of memory slots:
12
Supports triple channel mode:
yes
Maximum memory:
48 GB

Disk controllers EVGA 270-WS-W555-A1

IDE:?Integrated Drive Electronics
number of slots: 1, UltraDMA 133
SATA:?Serial Advanced Technology Attachment
number of connectors SATA 3Gb/s: 6, number of connectors SATA 6Gb/s: 2, RAID: 0, 1, 5, 10, JBOD based on the Intel ICH10R

Expansion slots EVGA 270-WS-W555-A1

Expansion slots:
7xPCI-E x16

Audio/video EVGA 270-WS-W555-A1

Sound:
7.1CH, HDA, based on the Realtek ALC889

Network EVGA 270-WS-W555-A1

Ethernet:
2x1000 Mbps, based on the Marvell 88E8057

Connection EVGA 270-WS-W555-A1

Interfaces:
12 USB 2 USB 3.0 ports (2 on the back panel), 2xeSATA, 2xEthernet, PS/2 (keyboard)
Back panel connectors:
8 USB 2 USB 3.0, 2xeSATA, 2xEthernet, PS/2 (keyboard)
Main power connector:
24-pin
Processor power connector:
8-pin + 8-pin

Advanced settings EVGA 270-WS-W555-A1

Form factor:
HPTX
