EVGA 151-SE-E777-KR specs

  Motherboards Specs >> EVGA >> EVGA 151-SE-E777-KR
Specifications | Reviews

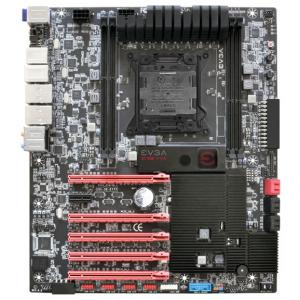

EVGA 151-SE-E777-KR



Processor EVGA 151-SE-E777-KR

Socket:
LGA2011
Processors supported:
Intel Core i7
System bus:
QuickPath Interconnect
Support for multi-core processors:
yes

Chipset EVGA 151-SE-E777-KR

Chipset:
Intel X79
BIOS:
AMI
EFI:
yes
SLI/CrossFire:?Scalable Link Interface
SLI/CrossFireX

Memory EVGA 151-SE-E777-KR

Memory:
DDR3 DIMM 800 - 2133 MHz
Number of memory slots:
4
Support Quad channel mode:
yes
Maximum memory:
32 GB

Disk controllers EVGA 151-SE-E777-KR

IDE:?Integrated Drive Electronics
no
SATA:?Serial Advanced Technology Attachment
number of connectors SATA 3Gb/s: 4, number of connectors SATA 6Gb/s: 2, RAID: 0, 1, 5, 10, JBOD

Expansion slots EVGA 151-SE-E777-KR

Expansion slots:
5xPCI-E x16
Support for PCI Express 3.0:
yes

Audio/video EVGA 151-SE-E777-KR

Sound:
7.1CH, HDA, based on the Realtek ALC898

Network EVGA 151-SE-E777-KR

Ethernet:
2x1000 Mbps, based on the Marvell 88E8059

Connection EVGA 151-SE-E777-KR

Interfaces:
20 USB, 10 USB 3.0 (8 on the back panel), 1xFireWire (IEEE1394a), S/PDIF output 2xeSATA, 2xEthernet, PS/2 (keyboard)
Back panel connectors:
10 USB, 8 USB 3.0, 1xFireWire (IEEE1394a), optical output, 2xeSATA, 2xEthernet, PS/2 (keyboard)
Main power connector:
24-pin
Processor power connector:
8-pin + 8-pin

Advanced settings EVGA 151-SE-E777-KR

Form factor:
EATX
Additional information:
modes PCI Express x16, 2x16 or 3x8
