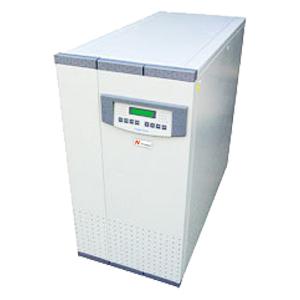

N-Power-Vision 10 KVA 3/1F specs.
Uninterruptible Power Supplies Specs >> N-Power >> N-Power-Vision 10 KVA 3/1F| Specifications | | | Reviews |
Technical characteristics N-Power-Vision 10 KVA 3/1F
Type:
double-conversion
Output power:
10, 000va / 8000 W
Operating time at full load:
8 min
Half load runtime:
18 min
Output waveform:
sine wave
The number of output power connectors:
1
Type of output power connectors:
IEC 320 C13 (computer)
Input / Output N-Power-Vision 10 KVA 3/1F
Inlet:
3-phase voltage
Output:
1-phase voltage
Input voltage:
304 - 498V
Input frequency:
47 - 63 Hz
Stable output voltage regulation (battery mode):
+ or-2 %
Management N-Power-Vision 10 KVA 3/1F
Interfaces:
RS-232
Dry contacts:
yes
Functionality N-Power-Vision 10 KVA 3/1F
Display information:
LCD screen
Audible alarm:
yes
Automatic By-pass:
yes
Battery N-Power-Vision 10 KVA 3/1F
Charging time:
8 hour
Connection of additional batteries:
yes
Protection N-Power-Vision 10 KVA 3/1F
Overload protection:
yes
Protection from high-voltage pulses:
yes
Noise filtering:
yes
Short circuit protection:
yes
Additional information N-Power-Vision 10 KVA 3/1F
Dimensions (WxHxD):
390x820x790 mm
Weight:
280 kg
Features:
SNMP support - optional; comes with one external battery pack BOH17
